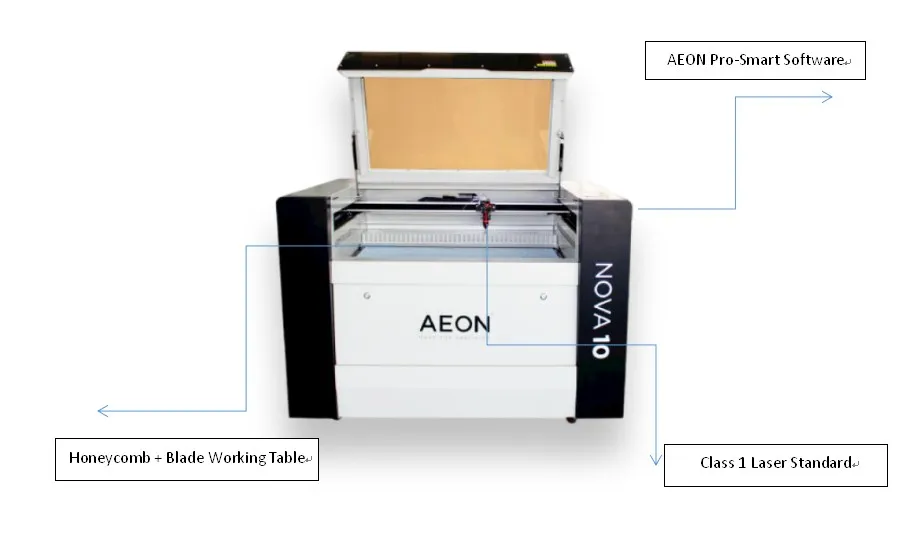

The AEON Nova 10 is a commercial-grade, freestanding laser engraving and cutting machine engineered for businesses that demand precision, power, and reliability. With a generous 1000 × 700mm working area, it’s built to handle large-format materials with ease.
Designed with a focus on cutting performance, the Nova 10 delivers an engraving speed of up to 1,000mm/s with 2G acceleration — a class-leading combination that outpaces most comparable machines on the market. The rigid, heavy-duty frame minimizes vibration during operation, ensuring consistently clean, accurate results even at high speeds.
The Nova 10 comes equipped with both a honeycomb and blade worktable, giving users the flexibility to work with a wide range of materials. Its robust cooling system — compatible with the Model 3000 or 5000 chiller — supports high-powered laser tubes up to 100W or 130W, making it capable of cutting through thicker and more demanding materials. The Z-axis travel has been extended to 200mm, accommodating taller workpieces that would be off-limits to lesser machines.
Airflow control has been thoughtfully refined, with a built-in pressure gauge and regulator on the air assist system, allowing users to connect a more powerful compressor for heavy-duty cutting tasks. Front and rear material pass-through doors further expand its versatility, enabling the processing of long, continuous materials without restriction.
Safety is built in at every level. The Nova 10 is certified to Class I laser standards, featuring a fully enclosed body, key-locked doors and windows, and a tempered glass lid designed for fire resistance.
Whether you’re running a production studio, sign shop, or fabrication business, the AEON Nova 10 is a powerful, scalable investment — one that grows with your workload and delivers professional results from day one.
| Specification | Details |
|---|---|
| Working Area | 1000 × 700mm |
| Laser Tube | 80W / 100W / 130W / 150W / RF50W / RF60W / RF100W |
| Laser Tube Type | CO₂ Sealed Glass Tube |
| Z-Axis Height | 150mm Adjustable |
| Input Voltage | 220V AC 50Hz / 110V AC 60Hz |
| Rated Power | 1200W – 1300W |
| Operating Modes | Optimized Raster, Vector, and Combined Mode |
| Resolution | 1000 DPI |
| Max Engraving Speed | 1200mm/s |
| Max Cutting Speed | 1000mm/s |
| Acceleration Speed | 5G |
| Laser Optical Control | 0–100% (Set by Software) |
| Minimum Engraving Size | Chinese Character: 2.0 × 2.0mm / English Letter: 1.0 × 1.0mm |
| Locating Precision | ≤ 0.1mm |
| Cutting Thickness | 0–10mm (material dependent) |
| Working Temperature | 0–45°C |
| Buffer Memory | 128MB |
| Compatible Software | CorelDraw, Photoshop, AutoCAD, Embroidery Software |
| Compatible OS | Windows XP/2000/Vista/7/8/10, Mac OS, Linux |
| Computer Interface | Ethernet / USB / Wi-Fi |
| Worktable | Honeycomb + Blade |
| Cooling System | Built-in Water Cooler with Cooling Fan |
| Air Pump | Built-in Noise-Suppression Air Pump |
| Exhaust Fan | Built-in Turbo Exhaust Blower |
| Machine Dimensions | 1520 × 1295 × 1025mm |
| Packed Weight | 420kg |
| Options | Wi-Fi, Autofocus, Rotary Attachment |
Clean Pack Design
One of the most common causes of laser machine failure is dust, smoke, and debris finding their way into the motion control system — gradually damaging guide rails and bearings. AEON’s Clean Pack technology seals and protects your mechanical components, delivering consistently high engraving quality, reliable high-speed performance, and significantly extended component life.

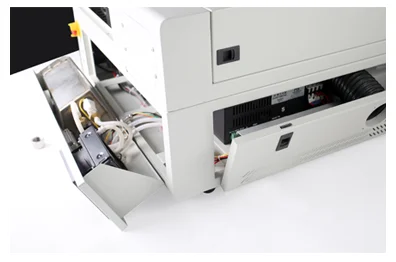

All-in-One Design
Every laser engraving machine requires extraction, tube temperature control, and air compression. With AEON’s smart All-in-One design, all three are fully integrated into the unit — no external devices, no cable clutter, no compromise. Just a clean, efficient setup that’s as practical as it is elegant. This concept is exclusive to AEON, and unavailable anywhere else in the world.

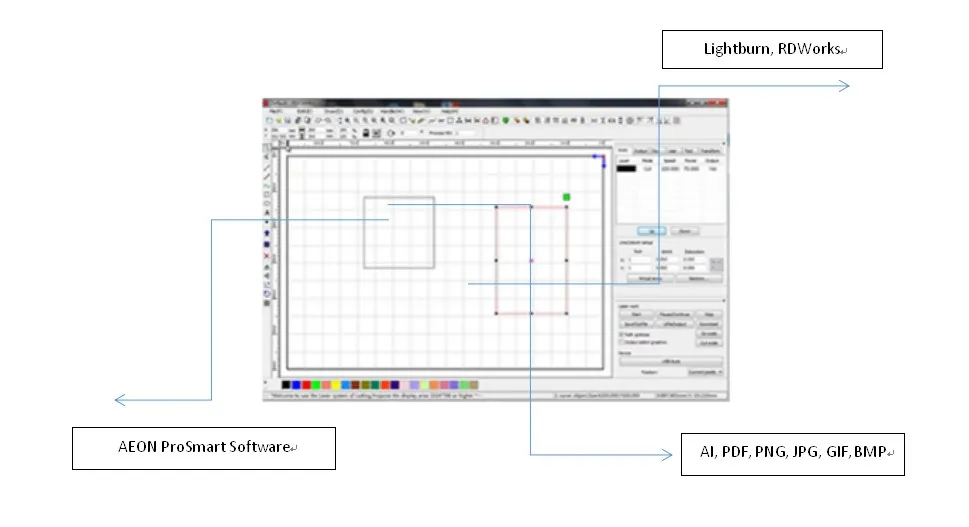

LightBurn Software
LightBurn is a powerful layout, editing, and control software built specifically for laser cutters. With LightBurn, you can:
LightBurn is a native application fully supported on Windows, Mac OS, and Linux.

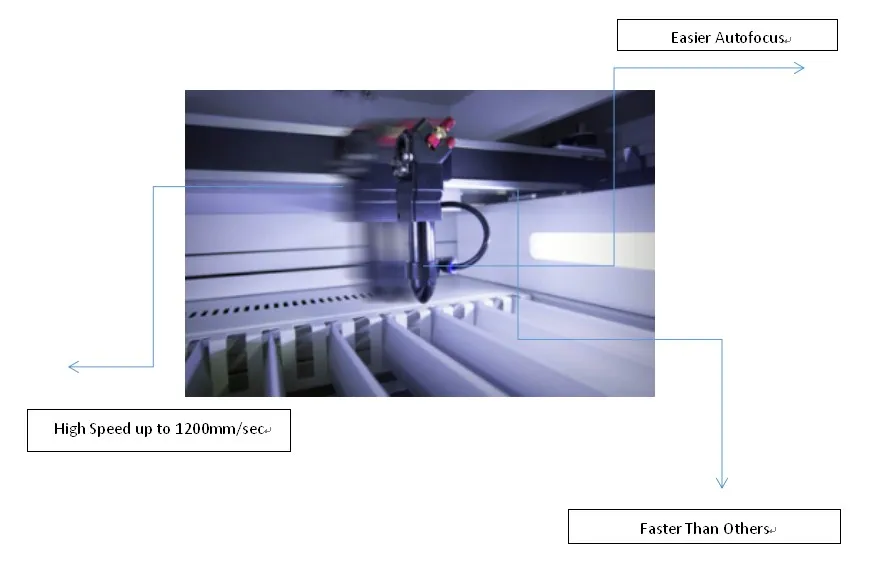

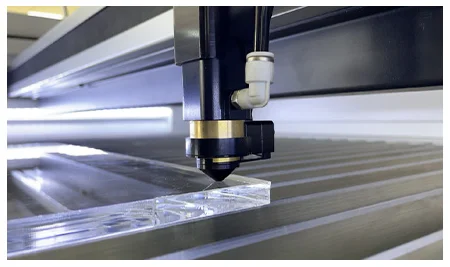

Integrated Autofocus
The redesigned laser head features a built-in autofocusing mechanism that is both lighter and far more precise than previous generations. Collisions and material damage are a thing of the past — just accurate, consistent focusing every time.
Clever Table Design
Different materials and applications call for different working heights — particularly when using a rotary attachment. That’s why the MIRA series comes standard with a honeycomb worktable (not an optional add-on) featuring up to 100mm of rise-and-fall adjustment and an automatic focus function to set the ideal table height effortlessly. Combined with a front-opening door that accommodates larger material pieces, the MIRA maximizes efficiency and versatility for a desktop laser.
